Project Description

[one_third last=”no” spacing=”yes” center_content=”no” hide_on_mobile=”no” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” hover_type=”none” link=”” border_position=”all” border_size=”0px” border_color=”” border_style=”” padding=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”” animation_speed=”0.1″ animation_offset=”” class=”” id=””]

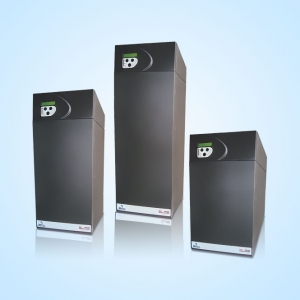

ELOS-300x300

[button link=”http://sabmatic.co/wp-content/uploads/2016/pdfs/ELOS.pdf” color=”green” size=”” stretch=”yes” type=”flat” shape=”square” target=”_blank” title=”” gradient_colors=”#81d742|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”” bevel_color=”” border_width=”1px” icon=”fa-download” icon_position=”left” icon_divider=”no” modal=”” animation_type=”bounce” animation_direction=”down” animation_speed=”0.1″ animation_offset=”” alignment=”center” class=”” id=””]Technical Specifications[/button][/one_third][two_third last=”yes” spacing=”yes” center_content=”no” hide_on_mobile=”no” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” hover_type=”none” link=”” border_position=”all” border_size=”0px” border_color=”” border_style=”” padding=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”” animation_speed=”0.1″ animation_offset=”” class=”” id=””]

[tabs tab1=”Description” tab2=”Key Points” tab3=”Key Features” ] [tab id=1] Emergency Lift Operating System

A static Converter designed to generate 3 phase output to support the Lifts / Elevators during utility failure. In addition to this, important load like staircase, parking, compound & common lights, security systems, water pump, fire pump etc. can be supported through this innovative product.
Emergency Lift Operating System offers comprehensive solutions to the most critical application & incorporates an array of outstanding user friendly features keeping in mind the day to day needs and long term technical and commercial viabilities.
The charger is a controlled rectifier that provides constant voltage & constant current to charge the battery bank whenever the utility supply is available.

[/tab] [tab id=2]

  • Rating: 6 KVA to 150 KVA
  • DC Voltage: 72vdc/180vdc /240vdc/360vdc
  • Charger Type: Controlled rectifier CVCC
  • Charging Time: 10hrs for 90% of full battery capacity
  • Power Factor: 0.8
  • Micro controller based LCD Panel for R, Y, B Output Voltage, current, frequency, and battery capacity percentage, last 5 backup time data storage, with no. of lift operations per backup.

[/tab] [tab id=3]

  • Fully automation operation
  • Low capital cost per KVA
  • No extra accessories cost
  • Battery power utilized only when the load is applied
  • Noiseless
  • Environment friendly
  • Very low operating cost
  • Low maintenance cost
  • Can be installed in a small foot print area
  • Operational cost fix during the battery life span
  • No fuel storage license required
  • Built-in protection like overload, short circuit, over voltage, regulated voltage & frequency
  • Built-in emergency landing facility
  • Data logging for back up duration & operation
  • Electromechanical switch internal for single lift and external for the multiple lifts
  • Static switch optional
  • Maximum size of Lift 20 persons/20HP

[/tab] [/tabs]

[/two_third]
