Project Description

[one_third last=”no” spacing=”yes” center_content=”no” hide_on_mobile=”no” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” hover_type=”none” link=”” border_position=”all” border_size=”0px” border_color=”” border_style=”” padding=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”” animation_speed=”0.1″ animation_offset=”” class=”” id=””]

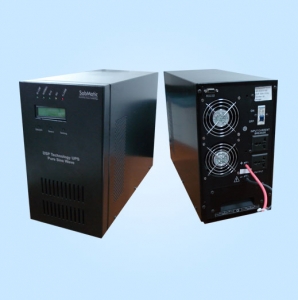

DSP-298x300

[button link=”http://sabmatic.co/wp-content/uploads/2016/pdfs/DPS-SERIES.pdf” color=”green” size=”” stretch=”yes” type=”flat” shape=”square” target=”_blank” title=”” gradient_colors=”#81d742|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”” bevel_color=”” border_width=”1px” icon=”fa-download” icon_position=”left” icon_divider=”no” modal=”” animation_type=”bounce” animation_direction=”down” animation_speed=”0.1″ animation_offset=”” alignment=”center” class=”” id=””]Technical Specifications[/button][/one_third][two_third last=”yes” spacing=”yes” center_content=”no” hide_on_mobile=”no” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” hover_type=”none” link=”” border_position=”all” border_size=”0px” border_color=”” border_style=”” padding=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”” animation_speed=”0.1″ animation_offset=”” class=”” id=””]

[tabs tab1=”Key Points” tab2=”Key Features” ]

[tab id=1]
Digital Processor Signal- 2KVA 24V / 3KVA 48V / 4KVA 72V DC
Uninterruptible Power Supplies

  • Range: 2-4KVA
  • Type: High Frequency 1:1
  • Rated Frequency: 50/60Hz
  • Output PF: 0.7/0.8(Optional)
  • Digital adjustable charger voltage & charger current
  • High capacity charger up to 30 amps
  • 2KVA-24VDC 3KVA-48VDC 4KVA-72VDC

[/tab]
[tab id=2]

  • Pure sine wave output
  • Wide input voltage and frequency range
  • Large LCD & LED display
  • Microprocessor control, self-check, battery check by itself
  • Online static bypass, strong protection for overload and UPS fault
  • RS232 & SNMP for optional, to provide remote control management
  • MTBF is more than 200,000 hours, and MTTR is 20 minutes

[/tab]

[/tabs]

[/two_third]
