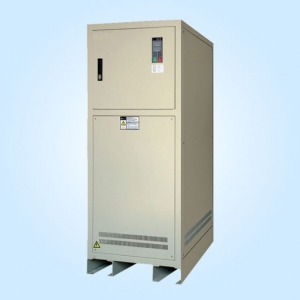

AP Series – Intelligent Faradic Electrical Manostat, Industrial 3Phase AVR

[one_third last=”no” spacing=”yes” center_content=”no” hide_on_mobile=”no” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” hover_type=”none” link=”” border_position=”all” border_size=”0px” border_color=”” border_style=”” padding=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”” animation_speed=”0.1″ animation_offset=”” class=”” id=””]

LVR41-300x300

[button link=”http://sabmatic.co/wp-content/uploads/2016/pdfs/AP-SERIES-AVR.pdf” color=”green” size=”” stretch=”yes” type=”flat” shape=”square” target=”_blank” title=”” gradient_colors=”#81d742|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”” bevel_color=”” border_width=”1px” icon=”fa-download” icon_position=”left” icon_divider=”no” modal=”” animation_type=”bounce” animation_direction=”down” animation_speed=”0.1″ animation_offset=”” alignment=”center” class=”” id=””]Technical Specifications[/button][/one_third][two_third last=”yes” spacing=”yes” center_content=”no” hide_on_mobile=”no” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” hover_type=”none” link=”” border_position=”all” border_size=”0px” border_color=”” border_style=”” padding=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”” animation_speed=”0.1″ animation_offset=”” class=”” id=””]

[tabs tab1=”Key Points” tab2=”Key Features” ] [tab id=1] AP Series – Industrial 3Phase AVR

Voltage stabilizing Range: Rated input voltage -20% (On customer’s demand)
Output Voltage: 220V, 380V, 440V (On customer’s demand)
Voltage stabilizing Ratio: +/-1%
Output Precision: +0.5%
Adjustable Service Efficiency: >98%
Reaction Time: <=0.1S(5 Cycles)
Working Frequency: 50/60HZ -10%
Wave Distortion: No distortion on sine wave Heat
Emission: Dry fan cooling
Heat Emission: Oil cooling up to 300KVA

[/tab] [tab id=2]

Made according to the theory of electromagnetic induction
No touch, no carbon brush abrasion, no sparkle
Low failure rate, high safety, no maintenance and change
Making use of magnetic field deflection to stabling voltage
No phase skipping, linear voltage regulation
No tap surging, no wave form mutation
Overcoming the defect of digital silicon control machine
Digital control precision can reach +- 1%
Auto detection and alarm for overvoltage, undervoltage, loss phase, reversed phase
Standard by-pass switch
Powerful eletromagnetic switch can automatically cut off output to protect load
Wave form distortion No wave form distortion
